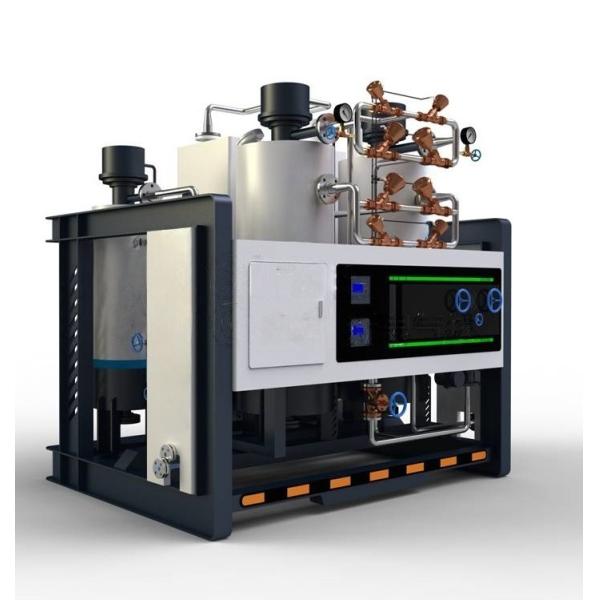

Full Automated Gas Purification System CE / / CCS / ISO / TS Approval

Description:

Nitrogen Purity: 99.9995%

Capacity: 10~3000Nm3/h

Dew point: -70 ℃

Outlet pressure: 1~6bar

Principle:

O2+H2——H2O

Via Oxygen and Hydrogen can make water under the catalyzator function, Plus the Hydrogen into

Nitrogen, the mixed gas will make reaction in the oxygen eliminating equipment which will full of high

efficiency catalyzator, to eliminate oxygen etc impurity, absorbing the double time dry principle to

eliminate water , getting the high purity Nitrogen. catalyzator will be the crucial part during the whole

eliminating oxygen process, while palladium etc noble metal is the key in catalyzator, therefore we also

called catalyzator for palladium catalyzator. Also called Palladium catalyst.

Characteristics:

Full Automation

All systems are designed for unattended operation and automatic Nitrogen demand adjustment.

Low Electric Energy Consumption

All systems are designed for Energy-Efficient.

Lower Space Requirement and Short installation period

The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated

and supplied from factory. PAIGE Machinery has own PAIGE brand of PSA Nitrogen generation equipment

Installation is very easy and convenient.

Fast Start-Up

Start up time is about 30 minutes to get desired Nitrogen purity. So these units can be switched ON &

OFF as per Nitrogen Demand changes.

High Reliability

Very reliable for continuous and steady operation with constant Nitrogen purity. Plant availability time is

better than 98% always.

Molecular Sieves Life

Expected Molecular sieves life is more than 10 years i. e. Whole life time of Nitrogen plant.

So no replacement costs.

Simple operation and maintenance

All systems are designed by integrated solution for easy-operation &easy-maintenance.

Technical Index :

High purity Nitrogen
Pressure :≤6bar

Dew point(Normal temperature);≤－70degree

Oxygen content:≤3ppm

Hydrogen content:0.1%～5%

Nitrogen content:1～5000Nm3/h

Application:

1. Metallurgy: For anneal protection, agglomeration protection, furnace washing and blowing ,etc.

Used in fields such as metal heating treatment, powder metallurgy, magnetic material,copper process,

metallic mesh, galvanized wire, semiconductor, etc.

2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement,

gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber,

plastic, tyre, polyurethane, biological technology, intermediate, etc.

3.Electronic industry: For encapsulation, agglomeration, anneal, deoxygenation, storage of electronic

products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic

porcelain, electronic copper tape, battery, electronic alloy material, etc.

We are dedicated in the research, development, design, production, manufacturing, sale and service of all kinds of industrial gas equipment, and provide professional consultation on industrial gas systems and related products. Our main products include PSA nitrogen generators, PSA oxygen generators, PSA hydrogen generators, ammonia cracking plant, nitrogen purification plant, methanol decomposition plant etc.

We have obtained dozens of National Invention patents through over 10 years and international certificates such as: ISO9001 international certification, TS certification, SGS testing and certification, CE certification, the United States ASME certification, China Classification Society CCS certification, BV certification, American Bureau of Shipping ABS certification, British Classification Society LR certification, German Classification Society GL certification.

We have provide quality equipment and services for customers from over 30 different industries, such as China Petro, China National Petroleum, CNOOC from petrochemical industry; Sony, Panasonic, Asus, Foxconn from electronics industry; Minute Maid, Jinllongyu, Dio Coffee from food industry; Shanghai Hyundai Pharmaceutical, Jilin Aodong pharmaceutical from pharmaceutical industry; Jiangxi Copper Corporation, Gaoxinzhang Copper from copper processing industry. We also maintain long-term cooperation with the esteemed research institutions, such as Tsinghua University, Henan University, Sichuan University, Tianjin University, 718 Research Institute, etc.. The firefighting system for Beijing Olympic Games in 2008 are equipped with our nitrogen system. Both phase 1 and 2. Nanjing Mint and Shanghai Mint have both purchased and used our Nitrogen system units for their coin production, and the result has been excellent.

Furthermore, we have exported our gas plants to over 40 different countries, with proven result on its quality, stability and safety. We hold the core culture concept of "people-oriented, realistic and innovative, customer first, quality first". We will continue the introduction of advanced technology and scientific research achievements from domestic and abroad, in order to provide more valuable products and services. With the advantages of technical know how, marketing and service, we’ve build a competitive, leading, respected enterprise in our society, in which all the staffs take pride of.
